Tuya Smart WiFi Gas Boiler Water Floor Heating Thermostat Wire Wiring Central Hub Controller Actuators with LED Indicators

Tuya Smart Product Store

Porduct Hightlight

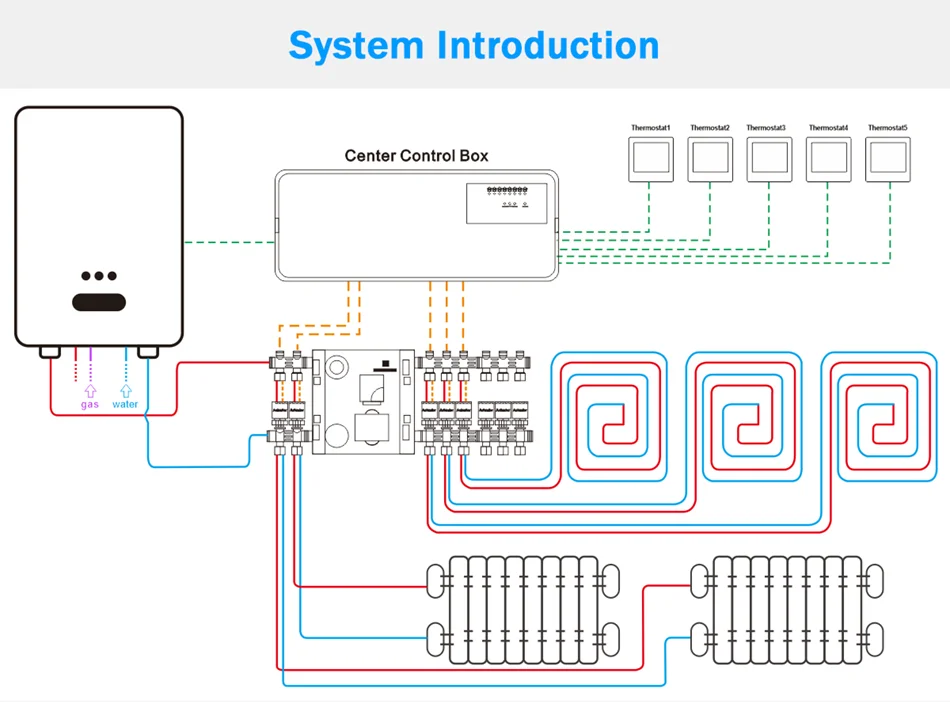

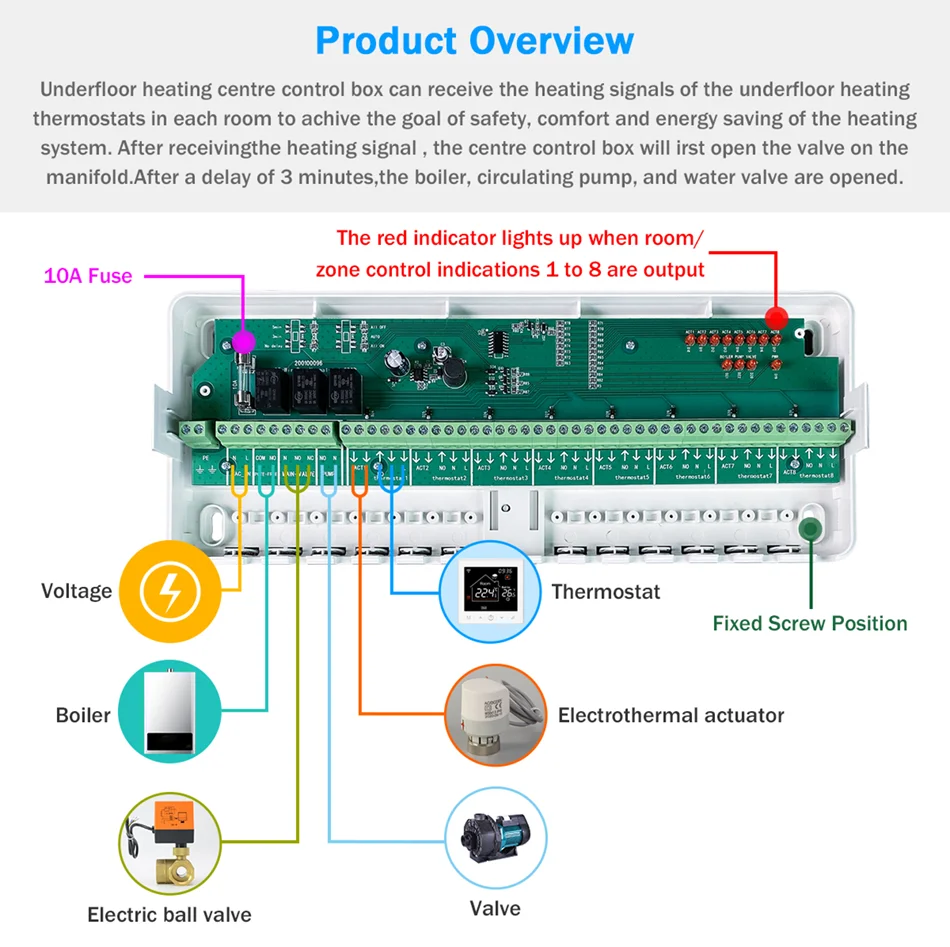

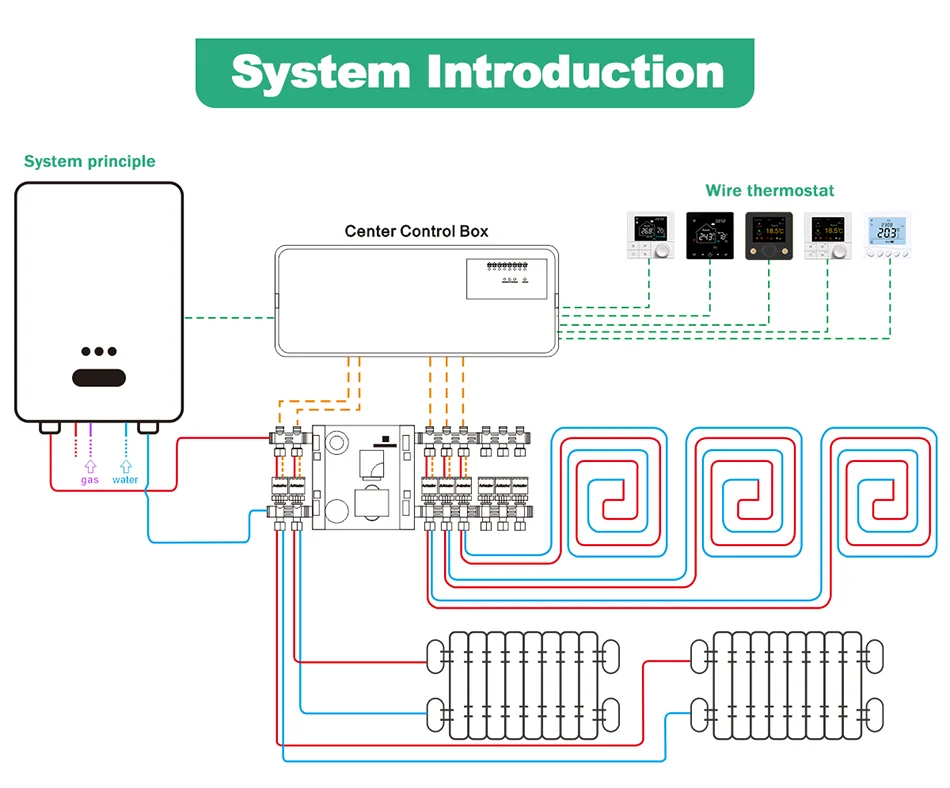

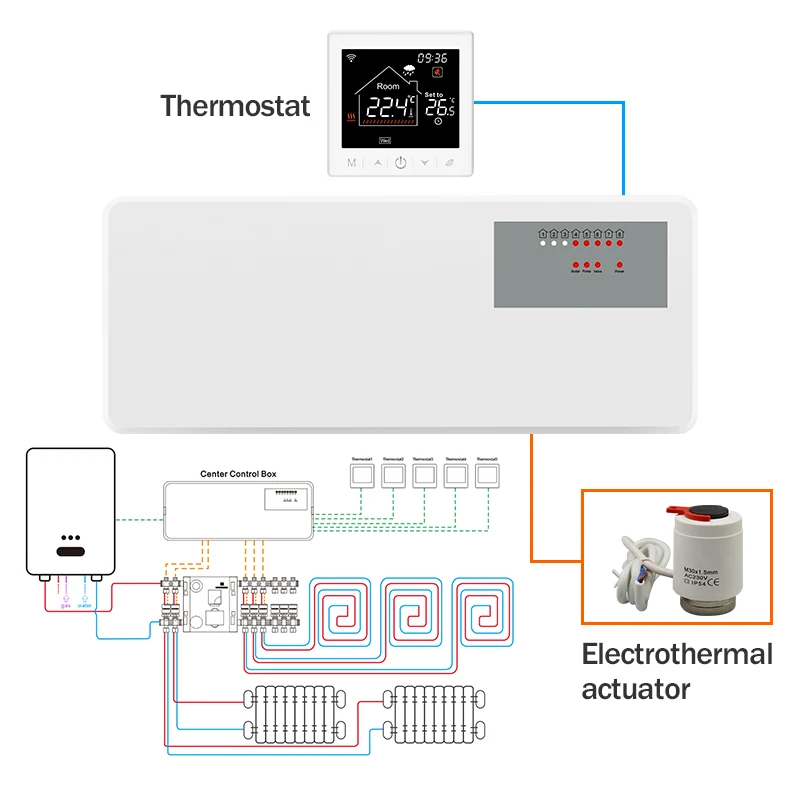

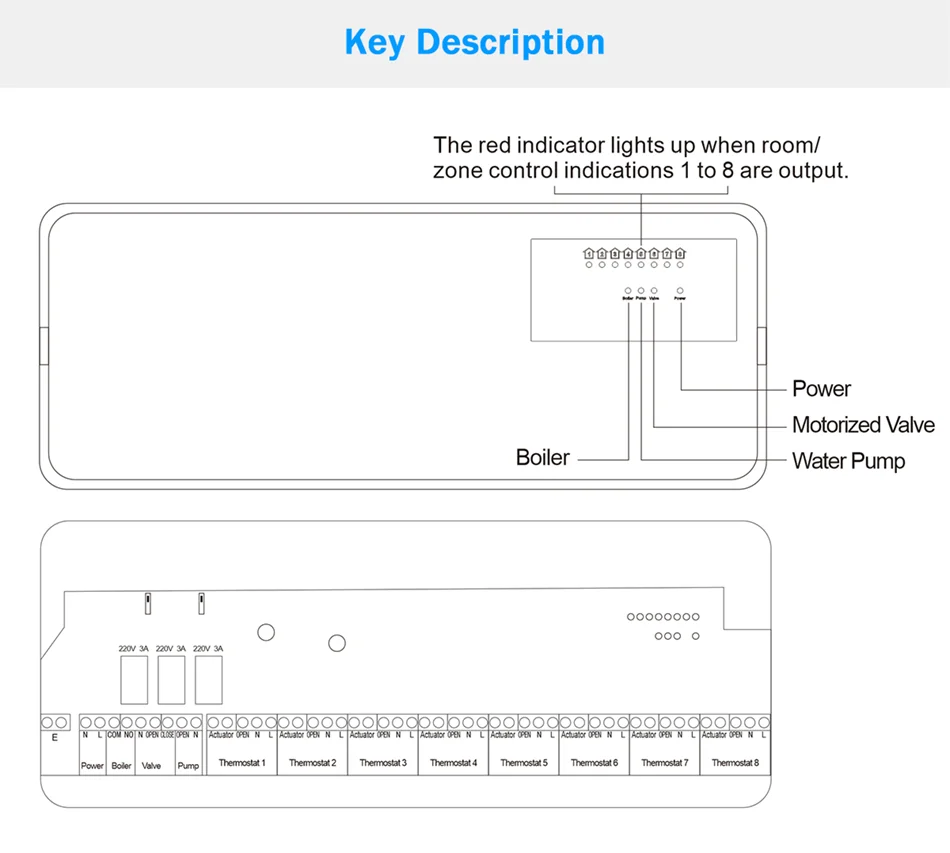

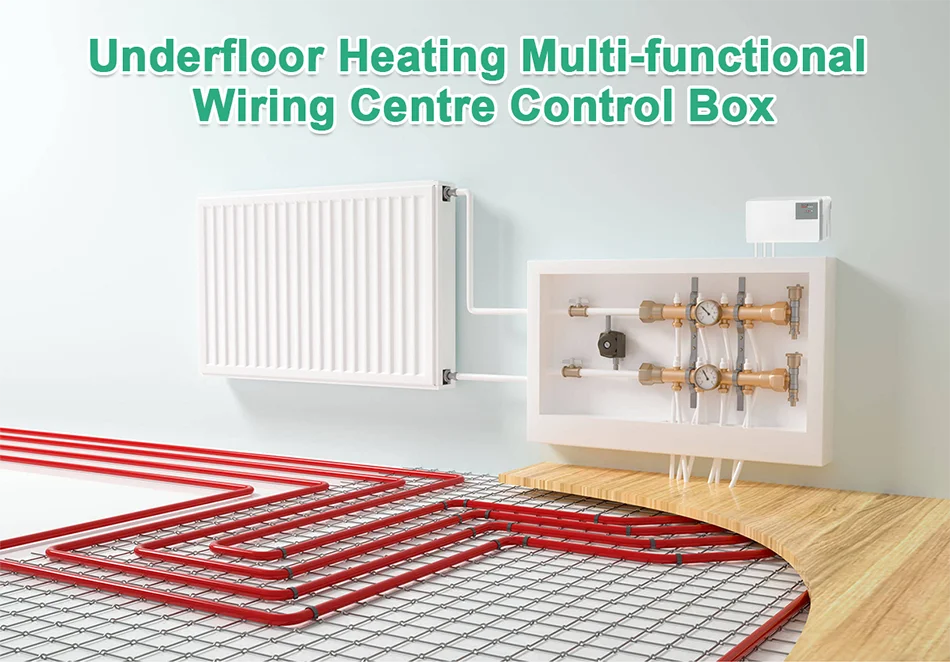

The wired hub controller is used in gas boiler floor heating systems. It can control boilers, circulation pumps, thermostats and actuators.

The hub controller can control the opening or closing of the boiler/circulating pump/electric actuator according to the temperature set by the user, so as to achieve the purpose of safety, comfort and energy saving.

One Hub can control up to 8 thermostats, allowing 8 rooms/zones to have different temperatures.

Please Notice

1. The rated power of the circulating pump and water valve relay is 3A

2. The maximum load of the centralized controller is 10A at full load

3. After the thermoelectric valve actuator continues to work for 3 minutes, the circulation pump, water valve and boiler are linked to open

4. 4. This is a wired hub controller, both the hub and thermostat and actuator are wired. WiFi means that the thermostat can be controlled through the mobile APP, but it needs to be connected to the thermostat through a wire

Technical Parameter:

Power supply: AC100~240V; 50~60Hz

Current load: 3A

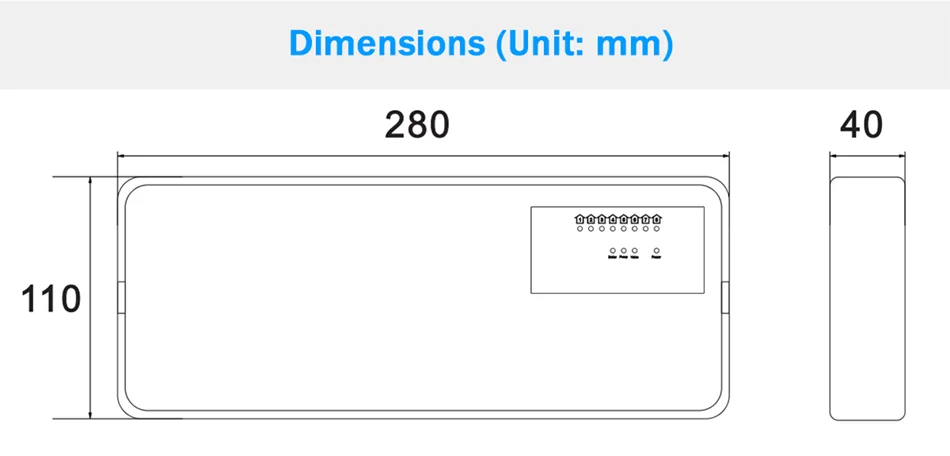

Dimensions: 280mm X 110mm X 40mm

Working temperature: -20 - 60℃

Storage temperature: -20 - 70℃

Delay time: delay 3 minutes

Package List:

1*hub controller

4*screws
